5 Appendix: Some basic Python instructions with a few examples.#
# First import all python add-ons etc that will be needed later on
# the next line is specific 'magic' instruction to jupyter notebook ; do not add anything to that line
%matplotlib inline
import numpy as np # general python fast numerical calculation
import matplotlib.pyplot as plt # general python plotting always used
from scipy.integrate import quad # specific use: e.g. import general numerical integration routine;
from sympy import * # algebraic solution of equations, only add if doing algebraic things
init_printing() # allows printing of SymPy results in typeset maths format
plt.rcParams.update({'font.size': 14}) # set font size for plots, alter at will.
5.1 Basic syntax. Python 3 is assumed.#
(1) The position an instruction starts on a line is important. Normally position zero starts a line but in loops or after conditional statements indented by 4 spaces or a tab. In general it seems that the spaces and tabs cannot be mixed.
(2) Python is case sensitive, i.e. a name \(\mathtt{Func}\) is different to \(\mathtt{func}\). Names should not start with a number.
(3) \(\sqrt{-1}\) is given the symbol \(\mathtt{1j}\) or \(\mathtt{1J}\)
(4) Division takes two forms, a/b for normal floating point, i.e. 3/2=1.5 and a//b for integer division, i.e 3//2=1
(5) Functions sin cos or your own use round brackets i.e. \(\mathtt{np.tan(x)}\), where \(x\) can be floating point or integer and the function is evaluated at hat value.
(6) Arrays/lists use square brackets, e.g. \(\mathtt{myary[i]}\) and integer index, \(i\), and returns the value at that index.
(7) Normal functions sin, cos etc. are unknown and have to be accessed via numpy as \(\mathtt{np.sin(x), \;np.exp(x),\; np.pi }\) etc. Use numpy for any numerical calculation other than trivial ones as it is fast.
(8) Powers are made as \(\mathtt{x**(1J+3)}\) etc.
(9) Indexing lists, sets, and arrays all start at zero, i.e. the first element of mylist is, \(\mathtt{mylist[ 0 ]}\). If the list is of length \(n\) the last element is \(\mathtt{mylist[n-1]}\)
(10) When using for loops, while loops, subroutines, if statements, etc. the first line ends in a colon: for example
f01=[i**2 for i in range(10)] # define list
for i in range(10): # this has values ten values, i from 0 to 9 end in :
f01[i] = i*10.5
print(f01[:])
[0.0, 10.5, 21.0, 31.5, 42.0, 52.5, 63.0, 73.5, 84.0, 94.5]
and all lines in the loop are inset by 4 spaces or a tab.
(11) Loops, subroutines, if etc. have no end statements; the tabbing is enough to delimit the range, however, it is acceptable to add the word pass as the last statement as it often makes reading easier.
(12) There are objects called list comprehensions that are an alternative to loops in many cases. (They are more consise but for speed or complex cases use loops).
mylist = [i+2 for i in range(6)] # makes list of 6 values, i=0 to 5 see below for details
mylist[:]
![../_images/Python crib_5_0.png](../_images/Python crib_5_0.png)
Arrays are usually called lists and enclosed by square brackets [] and indexed by square brackets, eg \(\mathtt{mylist=[ 2,3,4 ]}\) and so to print use
print( mylist[ 0 ] )
2
to print the first element or to print the whole thing.
print(mylist) # or
print(mylist[ : ])
[2, 3, 4, 5, 6, 7]
[2, 3, 4, 5, 6, 7]
2d lists are called as \(\mathtt{A[ i ][ j ]}\) , i.e. two separate brackets.
Numpy arrays are called in a similar manner however, two D arrays can be called differently as \(\mathtt{A[ i, j ]}\) with one square bracket.
5.2 Functions#
There are two types of user defined functions, as in a multiline subroutine or procedure e.g.
def myfunc(x): # use this for complicated function with if else etc
return x*np.sin(x)
print(myfunc(np.pi/3))
0.9068996821171088
and in a lambda or single line statement, e.g.
myfunc = lambda x : x*np.sin(x) # use for one line functions
print(myfunc(np.pi/3) )
0.9068996821171088
5.3 Importing packages#
It is necessary to import other packages for specific calculations, numpy for fast numerical calculations, scipy for special functions (such as error func), integrations, non-linear least squares etc. and matplotlib for plotting.
SymPy is used for algebraic calculations.
Print statements are always enclosed in brackets, eg. print(x**2) [ This is different to python 2.7 ]
The other main different to python 2.7 is that 3/2 is treated as real division,i.e. 1.5. To get integer division use 3//2 = 1. This is important if the division is then to be used as an index as these can only be integers.
5.4 Simple statements, printing formats#
a = 2.1**3.1 # raise to power
b = np.sin(2*np.pi*a) # use numpy to define sine and pi
c = 123
print(a,b,c) # quick print
print('{:s}{:6.3f}{:s}{:6.5g}{:s}{:4d}'.format('The value of a is ', a , '\nThe value of b is ',b, ', c is ',c))
# print uses s for string, f for reals, d for integer, g for general real, e for scientific if needed
# \n causes a newline
9.97423999265871 -0.1611491390171008 123
The value of a is 9.974
The value of b is -0.16115, c is 123
6 Lists and List comprehension#
Often a list (array in other languages) has n values that can be addressed later on. In python these can be number or strings of letters etc. or a mixture of these. Strings are enclosed in parenthesis as ‘a’.
Usually a name is chosen and then values added in a loop of some kind. In many cases in python this can be done in one go. This is called list comprehension, see how a is generated below. Also shown is how different values can be extracted. The range(5) has values 0 to 4 because the first value in the list has zero index so is given by a[0].
# printing and intro to list comprehension
a = [np.sin(i*np.pi/4) for i in range(5)] # list comprehension, range makes list of 5 values where i varies from 0 to 4
# this is alternative to a 'for' loop
print('list is ', a)
print('4th value is a[3] = ', a[3]) # print 4th value as index starts at zero
print('1st to 3rd value is a[0:3] = ', a[0:3])
print('last value a[-1] =',a[-1])
print('reverse order a[::-1] =', a[::-1]) # note double ::
list is [0.0, 0.7071067811865475, 1.0, 0.7071067811865476, 1.2246467991473532e-16]
4th value is a[3] = 0.7071067811865476
1st to 3rd value is a[0:3] = [0.0, 0.7071067811865475, 1.0]
last value a[-1] = 1.2246467991473532e-16
reverse order a[::-1] = [1.2246467991473532e-16, 0.7071067811865476, 1.0, 0.7071067811865475, 0.0]
print('The values in my list are as follows')
for p in a: # note colon and we call whole list
print('{:6.3f}'.format(p)) # format a list, note indent
print('Second method; use enumerate to get index and values')
for i, p in enumerate(a):
print('{:4d} {:6.3f}'.format(i,a[i]))
print('Third method; print directly as in conventional programming loop to get index and values')
for i in range(5): # call individual values
print('{:4d} {:6.3f}'.format(i,a[i])) # format a list
print('Fourth method part of list') # use list to define spcific values
for i in [0,3,4]:
print('{:4d} {:6.3f}'.format(i,a[i]))
The values in my list are as follows
0.000
0.707
1.000
0.707
0.000
Second method; use enumerate to get index and values
0 0.000
1 0.707
2 1.000
3 0.707
4 0.000
Third method; print directly as in conventional programming loop to get index and values
0 0.000
1 0.707
2 1.000
3 0.707
4 0.000
Fourth method part of list
0 0.000
3 0.707
4 0.000
6.1 Use list comprehension to make a double list#
Rather than use a double loop to put values into a double list this can be done in one go as follows.
b = [ [ np.exp(-i*j) for i in range(5)] for j in range(3) ] # 2d list, b[j][i] ,i.e. 2nd index in first place
print('\ndouble list is')
print(b)
print('\ndouble list index in order b[j][i], second row, fourth column has value b[1][4]', b[1][4] )
print('printing b[4][1] will lead to an error e.g.')
#print(b[4][1]) the error produced here will stop the notebook code cell from continuing until it is fixed.
double list is
[[1.0, 1.0, 1.0, 1.0, 1.0], [1.0, 0.36787944117144233, 0.1353352832366127, 0.049787068367863944, 0.01831563888873418], [1.0, 0.1353352832366127, 0.01831563888873418, 0.0024787521766663585, 0.00033546262790251185]]
double list index in order b[j][i], second row, fourth column has value b[1][4] 0.01831563888873418
printing b[4][1] will lead to an error e.g.
7 Numerics are much faster with numpy.#
Import numpy (see top of page) to use mathematical functions and make arrays. The operation is orders of times faster than basic python.
x = np.linspace(0,10*np.pi,5) # make x range from 0 to 10pi in 5 steps.
myary = np.zeros((5,3),dtype=float) # 2D array of size 5 by 3 (row, col) full of zeros
for i in range(5):
for j in range(3):
myary[i,j]= np.sin(x[i])*np.exp(-j/10)
print(myary[:,2]) # print all of column 2 which is 3rd as index starts at 0
myary[:,:]
[ 0.00000000e+00 8.18730753e-01 5.01327998e-16 -8.18730753e-01
-1.00265600e-15]
array([[ 0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
[ 1.00000000e+00, 9.04837418e-01, 8.18730753e-01],
[ 6.12323400e-16, 5.54053124e-16, 5.01327998e-16],
[-1.00000000e+00, -9.04837418e-01, -8.18730753e-01],
[-1.22464680e-15, -1.10810625e-15, -1.00265600e-15]])
8 Append to a list#
Appending one value at a time to a list is a very useful way of lengthening a list when the final length is unknown. Can be useful when reading datafile whose length is unknown. Start with an empty list then use a loop.
mylist = [] # empty list
lim_value = 3 # e.g. some value determined by programme else where
i = 0
while i <= lim_value:
if i != 1:
mylist.append( np.exp(-i**2/3)) # add value to list
i = i + 1 # you must increment index in a while loop
print(mylist)
[1.0, 0.26359713811572677, 0.049787068367863944]
8.1 Using loops and if else to calculate stuff. How to make sum of terms#
f01 = [ 0.0 for i in range(20)] # make list full of zeros
for i in range(20): # range i from 0 to 19
if i != 0 : # use if not equal to zero
f01[i] = np.sin(2*np.pi/i)**2
else:
f01[i] = 1.0
pass
print(f01) # print whole list
print('\nsum of whole list is ', sum(f01) ) # use just for 1D list, use numpy sum for anything else
[1.0, 5.99903913064743e-32, 1.4997597826618576e-32, 0.7500000000000003, 1.0, 0.9045084971874736, 0.7499999999999999, 0.6112604669781571, 0.4999999999999999, 0.41317591116653474, 0.3454915028125263, 0.2922924934990568, 0.24999999999999994, 0.21596762663442207, 0.18825509907063323, 0.16543469682057085, 0.14644660940672624, 0.13049554138967043, 0.11697777844051097, 0.10542974530180318]
sum of whole list is 7.885735968708085
Now do same calulation but instead of using i to determine values in the sine function we define x and give it values then we will plot the result. (If you want to alter the size of the plot then figure has to be used, see drawing two plots, somewhere below this cell).
numx = 300 # number of points
f01 = [ 0.0 for i in range(numx)] # make list full of zeros
# you could also use
# f01 = np.zeros(n,type=float)
x = np.linspace(0,2*np.pi,numx) # make numx values evenly spaces between 0 and 2pi
for i in range(numx): # range sets values, in this case x and f01 must have same length
if x[i] != 0 : # use if not equal to zero
f01[i] = np.sin(2*np.pi/(x[i]+1)) # fill list elements with values
else:
f01[i] = -1.0
pass
#print(f01) # printing disabled as 300 points
figx= plt.figure(figsize=(5, 4))
plt.plot(x,f01) # must have imported matplotlib, this is done at top of worksheet
plt.xlim([ 0, 6 ])
plt.ylim([ -2, 2])
plt.xlabel(' x /metre')
plt.ylabel( 'some function')
plt.title( ' simple plotting')
plt.axhline(0,color='grey')
plt.show() # this must be last plotting instruction

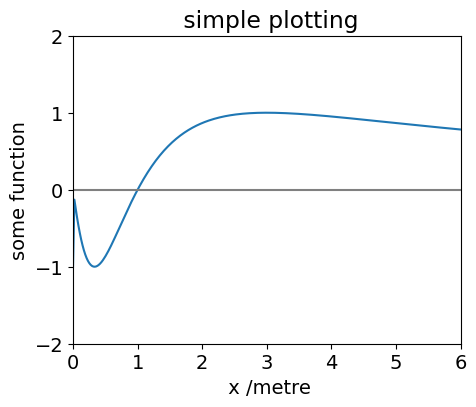

![../_images/Python crib_28_0.png](../_images/Python crib_28_0.png)
If you want to plot two graphs together then it is a bit more complicated. First it is necessary to define a figure and then define axes on which to draw the data and add subplots as the two figures. This is shown below.
9 Functions.#
There are standard functions sin, cos, exp etc. that we use numpy to call as np.sin(x) etc. There are also two main types of user defined function that can take arguments.
9.1 Lambda functions.#
These are single line functions and can be used for straightforward functions. They have the form
aname = lambda variable1, variable 2, etc. : expression in variables 1, 2 etc.
note the word lambda and the colon.
These function are called using normal curved brackets aname(3.0,2.0,…) Note that lists use square brackets.
It is also possible to use if statements inside a lambda and an example is given but it is usually better to use a def type function.
func1 = lambda x, z : np.cos(x) + np.exp(-x/z) # define function in x and z
print( func1(3.1,4.2) ) # print value at given x and z
func2 = lambda x, z: np.sin(x) if z <= 0 else np.cos(x) + exp(-x/z) # you can do this but its better to use def type functions
print('func2 with if statement, cannot plot this, value at -1 is ', func2(1.0,-1) )
x = np.linspace(0,2*np.pi,300) # define x values
plt.plot(x, func1(x,0.1),color='red' ) # example of plotting lambda function, note how x is whole list of values
plt.plot(x, func1(x,1.0),color='blue')
plt.plot(x, func1(x,3.0),color='gray' )
plt.title(r'$cos(x)+exp(-x/z)$') # plot using mathjax , put r before ' bla bla' and enclose in $ signs
plt.show()
-0.5211115802791633
func2 with if statement, cannot plot this, value at -1 is 0.8414709848078965

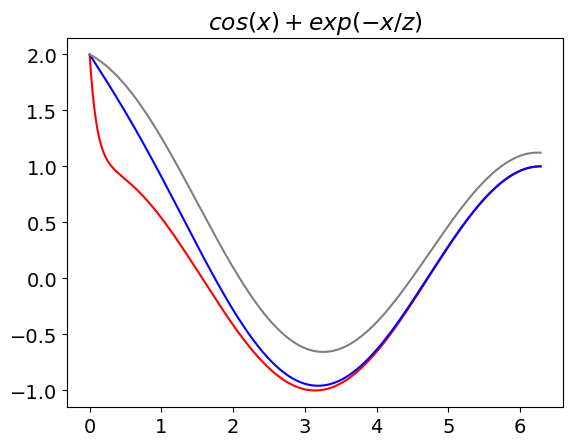

![../_images/Python crib_31_1.png](../_images/Python crib_31_1.png)
9.2 def functions#
These are the more general type of user defined functions and allow for any sort of complicated function. They are the equivalent of subroutines in other languages.
The answers you want are obtained by using a return statement.
The variables inside the function are local, i.e. if you use x inside its different to the x outside. However, there are rules on local and global variables that need checking.
The syntax for def functions is shown below. Note also that we can now plot negative values of aour function,not possible with the way the lambdat functio was defined.
def afunc(x,z): # define afunc to be function of x and z
if z <= 0: # can add if else and loops etc. inside def function.
ans = np.sin(x)
else:
ans = np.cos(x) + np.exp(-x/z)
return ans, 2*x, np.sin(z) # must use return (and as many values as you want )
Q, is_x, is_z = afunc(3.1,4.2) # return sends three values back, call them Q, is_x, is_z
print('returned values are Q, 2*x and sin(z), i.e.',Q, is_x, is_z)
x = np.linspace(-2.0*np.pi,2*np.pi,300) # define x values with numpy: (start, end, num points)
col=['red','blue','green'] # choose colours then index in loop
for j, z in enumerate([0.1,1.0,3.0]): # enumerate passes index , value into loop
plt.plot(x, func1(x,z),color = col[j], label='z=' + str(z) ) # example of plotting lambda function, note how x is whole list of values
pass
plt.ylim([-2,10])
plt.title(r'$cos(x)+exp(-x/z)$') # plot using mathjax , put r before ' bla bla' and enclose in $ signs
plt.axhline(0,color='gray')
plt.axvline(0,color='gray')
plt.legend()
plt.show()
returned values are Q, 2*x and sin(z), i.e. -0.5211115802791633 6.2 -0.8715757724135881

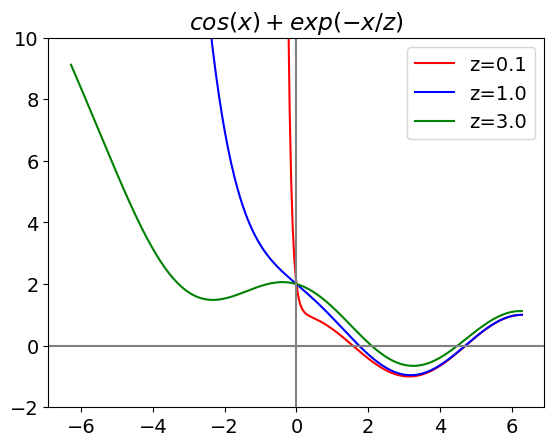

![../_images/Python crib_33_1.png](../_images/Python crib_33_1.png)
9.3 Recursive functions#
It is possible to make functions recursive, calculating a factorial as n! = n.(n-1).(n-2)….1 is the commonly used example and is given below as is one to calculate Hermite polynomials used in determining harmonic oscillator wavefunctions.
def fact(n): # factorial cannot be used for huge values
if n == 0 or n == 1:
return 1
else:
return n*fact(n-1) # call the function again until we get 1, jump out and end with return 1
#-------------------------
print('number factorial')
for i in range(10):
print (' ', i, ' ',fact(i))
number factorial
0 1
1 1
2 2
3 6
4 24
5 120
6 720
7 5040
8 40320
9 362880
def Hermite(n,x): # use recursion formula, x is real, n is order. H(n,x) = 2.x.H(n-1,x)-2.(n-1).H(n-2,x)
if n == 0:
return 1
elif n == 1:
return 2*x
else:
return 2*x*Hermite(n-1,x) - 2*(n-1)*Hermite(n-2,x)
#--------------
x = np.linspace(-5,5,100) # define x range with 100 points

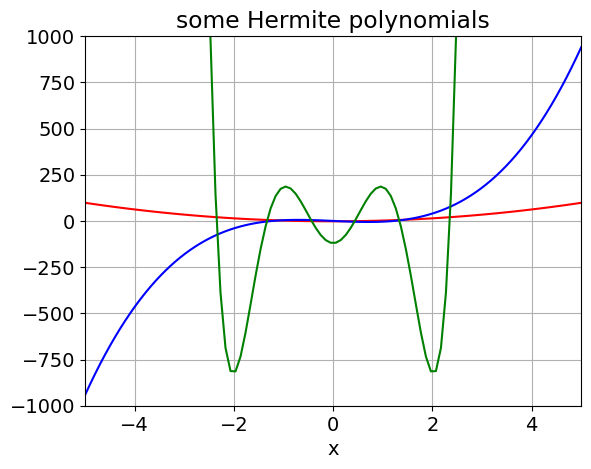

plt.plot(x, Hermite(2,x),color='red')
plt.plot(x, Hermite(3,x),color='blue')
plt.plot(x, Hermite(6,x),color='green')
plt.axis([-5,5,-1000,1000])
plt.xlabel('x')
plt.title('some Hermite polynomials')
plt.grid()
plt.show()
![../_images/Python crib_36_0.png](../_images/Python crib_36_0.png)
10 Using map( f(x), alist ) or [ f(x) for x in list ]#
This is a way to perform an operation of a list of things without having to use a loop. The map function has two or more arguments map( function, sequence ). One simple use is to multiply all of a list by some number, you cannot do *[1,2,4,5]2 for example, but have to use map or list comprehension as shown below.
# using map
alist = [1,2,4,5,7,9]
blist = list( map( lambda x: x**2, alist) ) # square list; note have to add list() to get result.
print('blist',blist)
# using list comprehension: does not matter which is used. This method seems clearer to me though
clist = [x**2 for x in alist]
print('clist',clist)
dlist= list(map(lambda x ,y: x**2 + y , alist, blist)) # square alist then add to blist.
print('\ndlist',dlist)
elist = list( map(np.sin, dlist) ) # make sine of each term
print('\nelist', elist)
eelist = [ np.sin(x) for x in dlist] # alternative
print('eelist', eelist)
# make characters from a ascii numbers
numlist = [ 72, 65, 84 , 82, 88, 32 ,73 ,83 , 32, 66 ,69 , 83, 84 ]
alpha = list( map( chr, numlist) )
print('\n',alpha)
print("\nremove ' and , from output", str(alpha).replace("'",'').replace(',','')) # remove ' and ,
blist [1, 4, 16, 25, 49, 81]
clist [1, 4, 16, 25, 49, 81]
dlist [2, 8, 32, 50, 98, 162]
elist [0.9092974268256817, 0.9893582466233818, 0.5514266812416906, -0.26237485370392877, -0.5733818719904229, -0.9784503507933796]
eelist [0.9092974268256817, 0.9893582466233818, 0.5514266812416906, -0.26237485370392877, -0.5733818719904229, -0.9784503507933796]
['H', 'A', 'T', 'R', 'X', ' ', 'I', 'S', ' ', 'B', 'E', 'S', 'T']
remove ' and , from output [H A T R X I S B E S T]
11 Algebraic and numerical integration of a function#
Now we will do some integration, both algebraic and numerically; we have already imported integrate from scipy; see top of document.
The function to integrate is first defined and plotted.
The calculation of nearest neighbour distances from one molecule to another has been worked out see Chandrashkar, Rev Mod Phys 1943.
Let \(w(r)\) be the probability that the nearest neighbour occurs between distance r and r+dr. This must be the probability than no molecules exist closer to the victim molecule that one occurs at a distance r and that this molecule axists in the shell r to r+dr. Thus,
where n is the average number of molecules / unit volume. (1 mol \(\equiv 10^3N_A/10^{27} = 0.6023 \) molecules / nm\(^3\)).
This is hard to solve as it is because \(w(r)\) is also inside the integration, so it is necessary to differentiate to find a result which is;
# plotting the distribution for some concentrations. Use n in molecs/nm^3, r in nm
w = lambda r,n : 4*np.pi*r**2*n*np.exp(-4*np.pi*r**3*n/3.0) # define function w(r) with variables r and n
maxr = 15.0 # max distance in nm
numr = 100 # number of data popints
n0 = 0.6023 # number molecs/nm^3 at 1 mole
r = np.linspace(0, maxr, numr) # make list of distances
for i in range(1,5): # note : range 1 to 4
n = n0*1e-3*i # 1e-3 to make millimolar; convert to number/nm^3
plt.plot( r, w(r,n), label = str('{:4.3e}'.format(n)) + 'M') # can put print format into string
plt.ylabel('w(r)')
plt.xlabel('x /nm')
plt.title('Nearest neighbour distributions')
plt.legend()
plt.show()
![../_images/Python crib_40_0.png](../_images/Python crib_40_0.png)
12.1 Algebraic integration; example to find average distance#
The average distance given the distribution \(w(r)\) is \(\displaystyle \langle r \rangle = \int_0^\infty rw(r)dr\). The integral can be performed in the normal way but we use SymPy to illustrate this. THe steps are to define symbolic constants then do the integration. In SymPy infinity is oo (two lower case letter o). The conds=’none’ removes any periodic conditions and so simplified the result.
# average distance algebraically
n,r = symbols(' n, r') # define symbols to use . Note also that pi and exp are known by sympy.
f01 = 4*pi*r**3*n*exp(-4*pi*r**3*n/3) # note that we do not use np.exp or np.pi as SymPy knows functions
av= integrate(f01,(r,0,oo), conds='none') # use conds ='none' if you are happy that no funny results are expected.
av
![../_images/Python crib_42_0.png](../_images/Python crib_42_0.png)
The result contains the gamma function, if you type \(\mathtt{av.evalf()}\) you can evaluate the numerical parts and find that \(\displaystyle \langle r \rangle = 0.55396n^{-1/3}\).
12.2 Numerical integration#
The same calculation can be done numerically of course, but in that case n has to be defined in each instance.
# using scipy numerical integration quad(func, x_start, x_end, arg( arguments in user function other than x))
# the quad() returns two values the integration and the error bound.
# the user define function below if called func (we are so imaginative)
# but could also de defined as _def myfunc(r,n):_ etc.
# general purpose integration.
# Must have loaded scipy integration here if not done above.
# it is always necessary to plot function first otherwise integration range may be unkonwn
# and integration may still converge properly but the result be in error.
func = lambda r, n : 4*np.pi*r**3*n*np.exp(-4*np.pi*r**3*n/3.0) # user define function to integrate,
# r is variable to integrate over, this need not be defined as quad() defines this.
n = 1e-3*0.6023 # molecules /nm^3
maxr = 30.0 # integration range
minr = 0.0
av, err = quad(func, minr, maxr, args=(n))
# in args only put variable name(s) from function not integrated over.
# err is error bound, you should check this for convergence
if err < 1e-6:
print('{:s}{:f}{:s}{:f}{:s}{:f}'.format('molecs/nm^3 = ',n,' numerical = ', av, ' exact = ', 0.55396/n**(1.0/3.0)))
else:
print('{:s}{:g}'.format('error too large ',err))
molecs/nm^3 = 0.000602 numerical = 6.559554 exact = 6.559551
13 Some other algebraic calculations, differentiation and series#
Sympy can be used in the same way as Maple or Mathematica to perform algebra. It is quite easy but the manuals are very obscure ansd so a couple of examples are given below.
First differentiating then generating series expansion of the funtion produced. The first step is to define the symbols to be used. We will use the nearest neighbour distribution to begin with. The best output results are found without using print() as shown below. If you do use print as in print(Q.doit() ) a code type output is produced and the nice output supressed.
# assume sympy already loaded.
n,r = symbols('n, r') # define symbols to use . Note also that pi and exp are known by sympy.
f01 = 4*pi*r**3*n*exp(-4*pi*r**3*n/3)
Q = simplify( diff(f01,r) ) # differentiate wrt r and simplify
Q # do calculation
#print(Q)
![../_images/Python crib_46_0.png](../_images/Python crib_46_0.png)
S = series(Q,r,0,15) # expand Q (above) about zero and to powers of r**15 if possible
S
![../_images/Python crib_47_0.png](../_images/Python crib_47_0.png)
If you want to use the result in subsequent code the ‘big O’ notation can be removed as shown below
S = series(Q,r,0,15).removeO() # expand Q (above) remove big O and then simplify
simplify(S)
![../_images/Python crib_49_0.png](../_images/Python crib_49_0.png)
14 Drawing two or more plots#
In this case it is necessary to define a figure and axes rather than using plt. as for just a single graph. Using a figure also allows the plot size to be defined rather than having to use the default.
# define an inline (lambda) function
# define a figure call it fig1 : ( I'm being really imaginative here). We can also define the total size for both figs.
fig1= plt.figure(figsize=(15.5, 10.5))
ax0 = fig1.add_subplot(2,2,1) # the numbers mean form a 2 x 2 plot and call ax0 and then first plot.
ax1 = fig1.add_subplot(2,2,2) # etc second plot.
# ax2 = fig1.add_subplot(2,2,4) # if you remove hash then three plots are drawn
# the notation on subplot is not very clear! to draw 4 plots in a square use (2,2,1) (2,2,2), (2,2,3) & (2,2,4)
# if only two axes are defined then only two are drawn; others are left blank
# the way the title limits etc are used is different when subplots are used.
f01 = lambda x, k : np.exp(-k*x) # define function and make variables x and k.
print('function with x=2 & k=5, is ', f01(2.0,5.0)) # evaluate with x=2, k=5 , note that we used curved brackets for a function
numx = 300
maxx = 20
x = np.linspace(0,maxx,numx) # numx points in range 0 to maxx
k = 0.2
ax0.plot(x,f01(x,k),color='black',label='k') # plot whole function on range x with k=0.02
ax0.plot(x,f01(x,3*k),color='red',linestyle='dashed',label='3k')
ax0.set_xlim([0,20]) # notice that we use set_ etc here compared to plt.xlim for just one graph
ax0.set_ylim([0,1])
ax0.set_title(' plot one')
ax0.set_xlabel(' x /nm')
ax0.set_ylabel(' amplitude')
ax0.legend() # a peculiarity here as its defined differently to others
k = -0.2
ax1.plot(x,f01(x,k)) # plot whole function on range x with k=-0.02
ax1.set_xlim([0,20]) # notice that we use set_ etc here compared to plt.xlim for just one graph
ax1.set_ylim([0,10])
ax1.set_title(' plot two, k = '+ str(k)) # str(k) makes a string and adds it to previous string in quotes.
ax1.set_xlabel(' x /nm')
ax1.set_ylabel(' amplitude')

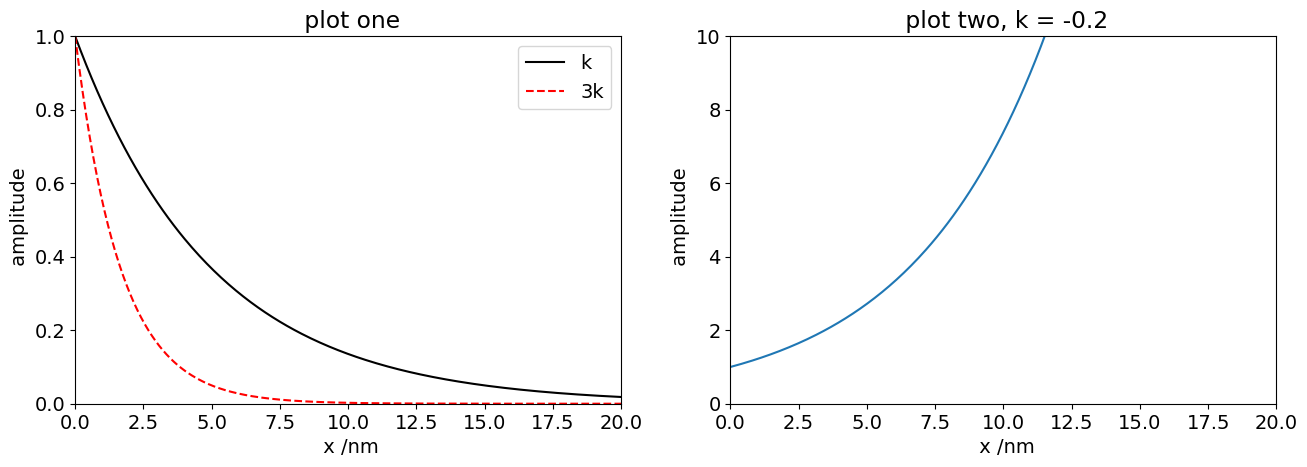

plt.show() # last plot statement note that this is plt. not an axis.
function with x=2 & k=5, is 4.5399929762484854e-05
![../_images/Python crib_51_1.png](../_images/Python crib_51_1.png)
15 Numerical integration of differential equations#
As an example the scheme \(A \leftrightharpoons B \rightarrow C \) is integrated. This is then done algebraically using sympy in lower down in the document.
The equations are
and the initial conditions at \(t=0\) are \(A[0] = X_0, \; B[0] = 0.0, \; C[0] = 0.0\) where \(X_0\) is defined in the code as the initial amount of A present.
The method by which to do this is shown in the code. (For clarity the reverse rate const is now called km1 instead of \(k_{-1}\))
from scipy.integrate import odeint # import odeint used for numerical integration of differential equations
dAdt= '-k1*A + km1*B' # rate equations,put as strings so will not evaluate until variables defined
dBdt= '+k1*A -(km1+k2)*B'
dCdt= '+k2*B'
print('{:s}{:s}\n{:s}{:s}\n{:s}{:s}'.format('dAdt=',dAdt,'dBdt =',dBdt,'dCdt=',dCdt))
k1 = 2.0 # rate const A
km1= 1.0 # rate const back to A
k2 = 3.0 # C does not decay only forms from B
X0 = [1.0, 0.0, 0.0] # initial conditions: A, B, C concentrations
def dX_dt(X, t, const): # returns rates dS/dt, dG/dt, dN/dt add extra terms here if necessary
k1, km1, k2 = const # constants needed for calc'n
A = X[0] # X[0] values of A, B ,C which are defined in equations dAdt etc.
B = X[1]
C = X[2]
f = np.array([ eval(dAdt), eval(dBdt), eval(dCdt)]) # make list; could be f=[eval(dAdt,...)]
# but numpy is faster
return f
# do calculation here
maxt = 5.0
numt = 500 # number of time points
const =[ k1, km1, k2] # constants for calc'n, must be defined bedore here
t = np.linspace( 0, maxt, numt ) # time as initial, final, then number of points in array
soln = odeint(dX_dt, X0, t, args=(const,) ) # solve equations
Aval, Bval , Cval = soln.T # extract results data the .T make the transpose

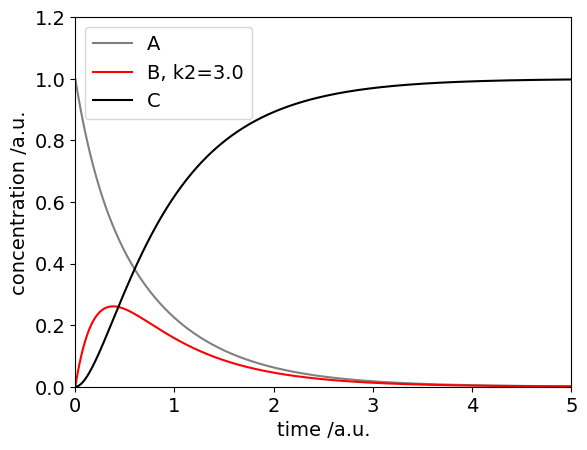

plt.plot(t,Aval,linestyle='-',color='gray',label='A')
plt.plot(t,Bval,color='red',label='B, k2='+str(k2) )
plt.plot(t,Cval,color='black',label='C')
plt.ylim([0,1.2])
plt.xlim([0,maxt])
plt.xlabel('time /a.u.')
plt.ylabel('concentration /a.u.')
plt.legend()
#plt.savefig('abc-fig1.png') # save figure as png; this will overwrite same name
plt.show()
dAdt=-k1*A + km1*B
dBdt =+k1*A -(km1+k2)*B
dCdt=+k2*B
![../_images/Python crib_53_1.png](../_images/Python crib_53_1.png)
15.1 Algebraic solution using Sympy#
The equations are
and to solve these it is easy to substitute one expression into the other before using the computer and so make a second order equation. C can be obtained from the conditions that if \(A_0\) is the initial amount \(A_0= A_t + B_t + C_t \) after we have found \(A_t, B_t\).
Differentiating B gives
and substituting for \(dA/dt\) and A so that only terms in B remain
Using SymPy the method is shown below. First define the symbols then a function B and the equation.
k1, k2, km1,t = symbols(' k1, k2, km1, t')
B = Function('B') # unknown function B has t as variable
de= Derivative(B(t),t,t) + (k1+k2+km1)*Derivative(B(t),t) + k1*k2*B(t)
s = dsolve(de )
s
#print(s)
![../_images/Python crib_55_0.png](../_images/Python crib_55_0.png)
Because constants are produced it is necessary to evaluate these before any further calcuation. At t=0 as B=0 then \(C_1+C_2=0\) and as the total magnitude of the signal does not matter we can set \(C_1=1\) and \(C_2=-1\). The plot below shows the algebraic solution for B.
k1 = 2.0 # rate const A
km1= 1.0 # rate const back to A
k2 = 3.0 # C does not decay only forms from B
maxt= 5.0
numt= 500 # number of time points
t = np.linspace( 0, maxt, numt ) # time as initial, final, then number of points in array
f01= lambda t: -np.exp(t*(-k1 - k2 - km1 - np.sqrt(k1**2 - 2*k1*k2 + 2*k1*km1 + k2**2 + 2*k2*km1 + km1**2))/2) \
+np.exp(t*(-k1 - k2 - km1 + np.sqrt(k1**2 - 2*k1*k2 + 2*k1*km1 + k2**2 + 2*k2*km1 + km1**2))/2)

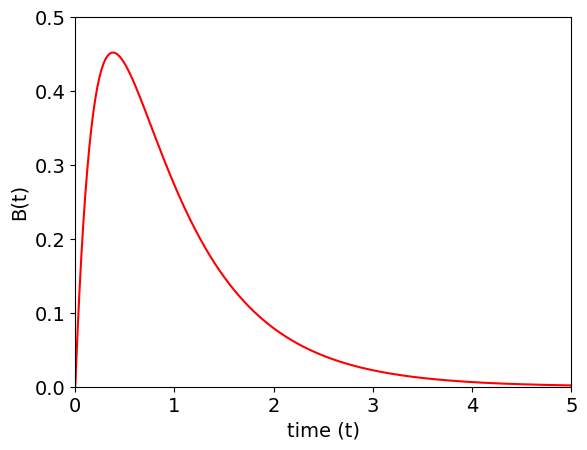

plt.plot(t,f01(t),color='red')
plt.xlabel('time (t)')
plt.ylabel('B(t)')
plt.axis([0,5,0,0.5])
plt.show()
![../_images/Python crib_57_0.png](../_images/Python crib_57_0.png)
16 Reading data from files and make a 3D plot from .sdf data#
Python has several different ways of reading data and numpy has even more sophisticated methods. The best way to start with is to use the script with open() as f: as shown below as this aoutmatically closes the file . Use f.readlines() get the whole lot of the data. It reads a list so may be text numbers or a mixture; it is up to you to sort this out later on.
The example reads an .sdf file. The first 4 lines are header, line 4 contains the number of atoms and number of connections and this is followed by x y z & atom symbol and then the connections list. If there are many lines of data the number of atoms and connections can merge so it is necessary to specifically look for this and correct for it.
# code to read .sdf data and plot 3D graph, xyz contains the coordinates and conect the atom connection list.
# jupyter cannot animate or move graphs easly if at all
dataname = 'cyclohexane.sdf' # put in same folder as notebook as path is not shown
print('{:s}{:s}'.format('Reading sdf data = ', dataname))
with open(dataname,'r') as f: # follow this style using with open() etc.
data = f.readlines() # readlines reads all file & makes list of strings
num = len(data)
print( '{:d} {:s}'.format(num, ' lines read' ) )
temp = data[3].split() # split data line number 4 as this contains atom numbers
astr = temp[0]
n = len(astr)
if n > 3: # max number of atoms is 999, and 999 for connections.
numxyz= int(astr[0:n//2]) # note integer division
numc= int(astr[n//2:n])
else:
numxyz= int(temp[0])
numc = int(temp[1])
print('{:s}{:4d}{:s}{:4d}'.format('number of atoms =', numxyz, ' number of connections =', numc))
xyz= [[0.0 for i in range(3)] for j in range(numxyz)] # coordinates xyz[j][i]
atm= ['z' for i in range(numxyz)] # atom names
conect= [[ 0 for i in range(3)] for j in range(numc)] # conections
for i in range(numxyz):
temp = data[i + 4].split() # split list at spaces (default)
atm[i] = temp[3] # atom symbol in posn 4 e.g Hg, Cl, O etc.
for j in range(3):
xyz[i][j]= float(temp[j]) # x, y z cordinates
for i in range(numc):
temp = data[i + numxyz + 4].split()
if len(temp) == 2 : # should be 3 numbers but two may combine
astr = temp[0] # 1 23 2 if small else 234567 2 if large.
n = len(astr)
conect[i][0]= int(astr[0:n//2])
conect[i][1]= int(astr[n//2:n])
conect[i][2]= int(temp[1])
else:
conect[i][0]= int(temp[0])
conect[i][1]= int(temp[1])
conect[i][2]= int(temp[2])
from mpl_toolkits.mplot3d import Axes3D # make #D plot
fig = plt.figure(figsize=(10.5, 10.5))
ax = fig.add_subplot(111, projection='3d')
adict = {'C':'black', 'O':'red', 'N':'blue', 'S':'yellow', 'H':'gray'} # dictionary { key1: index1, key2: index2,....}
for i in range(numxyz):
col='purple'
if atm[i] in adict:
col = adict[atm[i]] # use colour if in dictionary else purple
ax.scatter(xyz[i][0],xyz[i][1],xyz[i][2], marker='o',color = col, s=1000)
pass
for i in range(numc):
indxa = conect[i][0]-1 # -1 because list index starts at zero
indxb = conect[i][1]-1
ax.plot([xyz[indxa][0], xyz[indxb][0]],[xyz[indxa][1], xyz[indxb][1]],zs=[xyz[indxa][2], xyz[indxb][2]] ,color='black',linewidth=10)
pass
ax.set_ylabel('y')
ax.set_xlabel('x')
ax.set_zlabel('z')
ax.view_init(azim=10, elev=80) # set view angles
pass
plt.show()
# if you use %matplotlib notebook instead of %matplotlib inline you can rotate image etc.
Reading sdf data = cyclohexane.sdf
43 lines read
number of atoms = 18 number of connections = 18
![../_images/Python crib_59_1.png](../_images/Python crib_59_1.png)
16.1 Reading pdb data#
The code below finds the number of atoms and produces a list of coordinates. Put the .pdb into the same folder as this notebook
dataname='4c3c.pdb' # Download data from Brookhaen site https://www.rcsb.org/
print( '{:s} {:s}'.format('filename is ', dataname) )
def get_num_atoms(astr): # find string and parse to get number of atoms,
if line.find(astr) != -1: # look for 'astr' in whole line; if not there find returns -1
vals =line.split() # split at spaces
print('looking for number of atoms ',vals)
return int(vals[5]) # from format on pdf must be number in pos'n 5 (counting from 0)
else:
return 0 # not found
numatm = 0
with open(dataname) as f: # read lines one at a time
for line in f:
numatm = numatm + get_num_atoms('PROTEIN ATOMS')
numatm = numatm + get_num_atoms('HETEROGEN ATOMS')
numatm = numatm + get_num_atoms('SOLVENT ATOMS')
pass
f.close() # not necesary but for clarity
print( '{:s} {:d}'.format('number of atoms is ',numatm))
coords= np.zeros( (numatm,3), dtype=float) # use numpy to define a numatm by 3 list filled with zeros
atm= ['' for i in range(numatm)] # define an array
cindx=['' for i in range(numatm)]
atyp= ['' for i in range(numatm)]
# now having found number of atoms go back and read data. This saves reading whole file in one go
print('atom index separation (Angstrom) Atom type')
j = 0
with open(dataname) as f:
for line in f:
vals = line.split()
if (vals[0] == 'ATOM') or (vals[0] == 'HETATM'):
if len(vals[2]) > 4:
vals.insert(2,vals[2])
if len(vals[4]) == 5:
vals.insert(5,vals[4])
coords[j,0] = float(vals[6]) # make string into real number
coords[j,1] = float(vals[7])
coords[j,2] = float(vals[8])
atm[j]= vals[11]
cindx[j]= vals[1]
atyp[j]= vals[2] + ' ' + vals[3]
#print('{:8s} {:4d} {:12.6f} {:12.6f} {:12.6f} {:10s}'.format( vals[0], int(vals[1]), float(vals[6]), float(vals[7]), float(vals[8]), vals[11]))
j=j+1
pass
filename is 4c3c.pdb
looking for number of atoms ['REMARK', '3', 'PROTEIN', 'ATOMS', ':', '1549']
looking for number of atoms ['REMARK', '3', 'HETEROGEN', 'ATOMS', ':', '10']
looking for number of atoms ['REMARK', '3', 'SOLVENT', 'ATOMS', ':', '165']
number of atoms is 1724
atom index separation (Angstrom) Atom type
17 Fitting data using non-linear least squares#
In the example below some noisy data is read then, with a function that is supposed to fit the function, the data is analysed. Graphs are plotted.
from scipy.optimize import curve_fit
from matplotlib import gridspec # get this to force size of graphs
fig1= plt.figure(figsize=(9.5, 10))
fig1.suptitle('Curve Fitting')
gs = gridspec.GridSpec(2, 1,width_ratios=[1],height_ratios=[1,4]) # make plots different sizes
ax1 = fig1.add_subplot(gs[0])
ax0 = fig1.add_subplot(gs[1])
eqn = r'$a.\exp(- b.x^2) + c.x^2 + d$' # eqn can be printed out on graph
fit_func = lambda x, a, b, c, d : a*np.exp(- b*x**2) + c*x**2 + d
# must know type of function to fit to, eval makes string into code
# double well potential, gaussian in parabola
# now read in data
dataname = 'data-to-fit.txt' # put in same folder as notebook as path is not shown
print('{:s}{:s}'.format('Reading data, filename used is ', dataname))
with open(dataname,'r') as f: # follow this style using with open() etc.
temp = f.readlines() # readlines reads all file & makes list of strings
num = len(temp)
print( '{:4d} {:s}'.format(num, ' lines read' ) )
signal= np.zeros(num,dtype=float)
tme = np.zeros(num,dtype=float)
for i in range(num):
f01= temp[i].split() # split line and get two values t and signal
tme[i]= float(f01[0])
signal[i]= float(f01[1])
pass
inits = [10.5, 1.0, 20.0, 10.0] # initial values, need not be used in curve_fit
fitP, fitC = curve_fit(fit_func, tme, signal, p0 = inits) # fitP are parameters, a,b,c,d , fitC are covariances
print('{:s} {:6.3f} {:6.3f} {:6.3f} {:6.3f}'.\
format('parameters are\n a b c d\n', fitP[0],fitP[1],fitP[2],fitP[3]))
print('Covarience Matrix \n')
for i in range(4):
print(fitC[i][:])
the_fit = fit_func(tme,fitP[0],fitP[1],fitP[2],fitP[3])
resid=[ (signal[i]-the_fit[i])/the_fit[i] for i in range(num)]
print('\n{:s}{:8.3g}'.format('Normalised total residual squared ', sum(resid[i]**2 for i in range(num))/num))
ax0.plot(tme,signal,color='red')
ax0.plot(tme,the_fit,color='blue')
ax0.set_xlabel('x/nm')
ax0.set_ylabel('Energy /cm'+r'$^{-1}$')
ax0.set_title('fitted to '+eqn)
ax1.plot(tme,resid)
ax1.axhline(0,color='grey',linestyle='dashed',linewidth=2)
ax1.set_xlabel('x/nm')
ax1.set_ylabel('residual')
fig1.tight_layout()
plt.show()
Reading data, filename used is data-to-fit.txt
200 lines read
parameters are
a b c d
55.017 1.278 2.485 -0.701
Covarience Matrix
[ 0.41936546 0.00318249 0.00789851 -0.12121503]
[ 0.00318249 0.00147218 -0.00056136 0.00917061]
[ 0.00789851 -0.00056136 0.00083975 -0.01018475]
[-0.12121503 0.00917061 -0.01018475 0.15947232]
Normalised total residual squared 0.0228

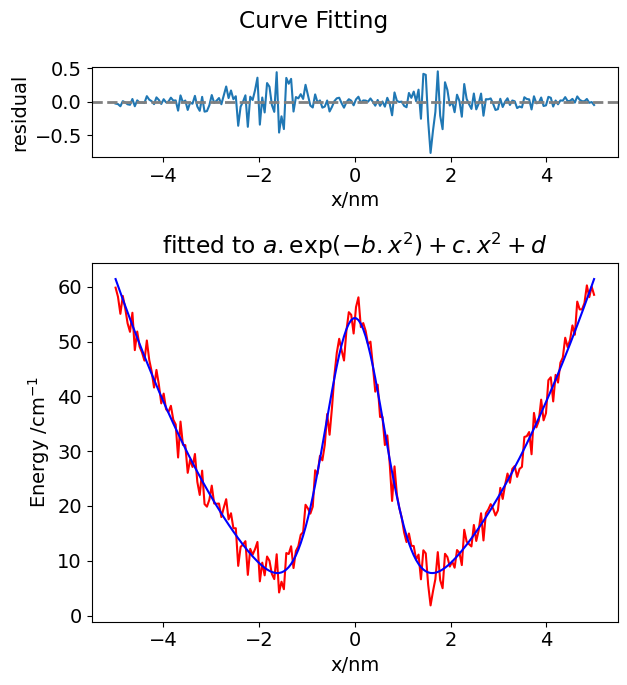

![../_images/Python crib_63_1.png](../_images/Python crib_63_1.png)
# example of contour plotting for 2D particle in a box spatial wavefunctions
fig1= plt.figure(figsize=(12, 6))
plt.rcParams.update({'font.size': 16}) # set font size for plots, alter at will.
ax0 = fig1.add_subplot(1,2,1) # 1 row 2 cols in plot then ax0 is plot 1.
ax1 = fig1.add_subplot(1,2,2)
L = 1
n = 2
m = 3
num = 100
f = lambda n,x: np.sqrt(2/L)*np.sin(n*np.pi*x/L) # wavefunction, qnum n at position x
xa = np.linspace(0,1,num)
xb = np.linspace(0,1,num)
psiT = np.zeros((num,num),dtype=float )
psiS = np.zeros((num,num),dtype=float )
Xa,Xb = np.meshgrid(xa,xb) # always make grid to do contour plot
for i in range(num):
for j in range(num):
psiT[i,j]= 1-( f(n, Xa[i,j] )*f(m,Xb[i,j]) - f( n,Xb[i,j] )*f(m,Xa[i,j]) )**2
psiS[i,j]= 1-( f(n, Xa[i,j] )*f(m,Xb[i,j]) + f( n,Xb[i,j] )*f(m,Xa[i,j]) )**2
cmap = plt.cm.RdYlBu # color map
ax0.contour(Xa,Xb,psiT,cmap=cmap,levels=20)
ax0.set_title('Triplet')
ax1.contour(Xa,Xb,psiS,cmap=cmap,levels=20)
ax1.set_title('Singlet')
plt.tight_layout()
plt.show()

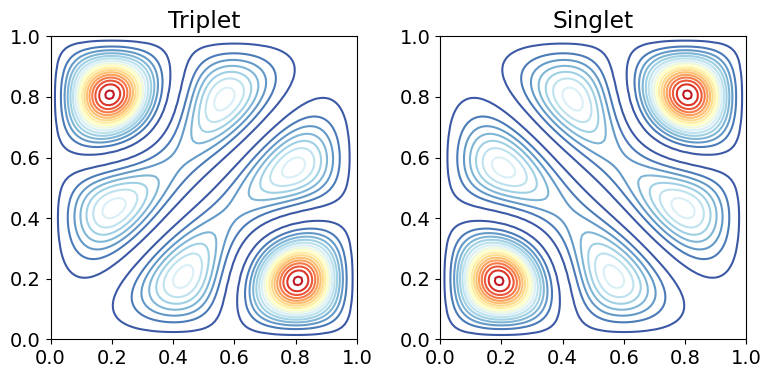

![../_images/Python crib_64_0.png](../_images/Python crib_64_0.png)
18 Data needed for examples above#
‘data-to-fit.txt’#
remove # after copying
#-5.0 59.854289812
#-4.94974874372 58.1802931927
#-4.89949748744 55.0711715581
#-4.84924623116 58.3405861257
#-4.79899497487 56.0883076321
#-4.74874371859 53.3290150733
#-4.69849246231 51.7838064825
#-4.64824120603 55.2710503925
#-4.59798994975 48.4442916828
#-4.54773869347 51.8376658613
#-4.49748743719 49.0465127074
#-4.4472361809 48.0187755942
#-4.39698492462 46.5301322942
#-4.34673366834 50.2059520632
#-4.29648241206 46.6593203961
#-4.24623115578 44.5577461333
#-4.1959798995 41.6161183466
#-4.14572864322 44.8301013032
#-4.09547738693 42.1573300155
#-4.04522613065 38.7209975092
#-3.99497487437 40.5125772313
#-3.94472361809 37.6602429204
#-3.89447236181 37.150204681
#-3.84422110553 38.2822017573
#-3.79396984925 35.746126679
#-3.74371859296 34.8758613307
#-3.69346733668 28.840409984
#-3.6432160804 35.4019138298
#-3.59296482412 31.1633225852
#-3.54271356784 31.0986435562
#-3.49246231156 26.0433200376
#-3.44221105528 28.4339630025
#-3.39195979899 27.1203947211
#-3.34170854271 29.4839678762
#-3.29145728643 24.3877353808
#-3.24120603015 22.0094501915
#-3.19095477387 26.4406972715
#-3.14070351759 20.3370890653
#-3.09045226131 19.8680580507
#-3.04020100503 21.1385503497
#-2.98994974874 23.706714962
#-2.93969849246 20.4554585086
#-2.88944723618 20.3914079471
#-2.8391959799 20.4418840237
#-2.78894472362 17.9712929447
#-2.73869346734 19.7075282977
#-2.68844221106 21.2352734198
#-2.63819095477 17.542482082
#-2.58793969849 18.667330437
#-2.53768844221 15.9276238272
#-2.48743718593 15.9312428108
#-2.43718592965 9.06098812742
#-2.38693467337 12.5254700504
#-2.33668341709 12.9622476284
#-2.2864321608 13.5685396723
#-2.23618090452 7.41425227714
#-2.18592964824 12.1667037172
#-2.13567839196 11.0931916497
#-2.08542713568 12.1111484718
#-2.0351758794 13.4308647198
#-1.98492462312 6.23366307584
#-1.93467336683 9.64816859361
#-1.88442211055 7.33582779723
#-1.83417085427 10.7674491214
#-1.78391959799 9.99187349798
#-1.73366834171 7.58676502227
#-1.68341708543 6.64575672598
#-1.63316582915 11.178297747
#-1.58291457286 4.20474298874
#-1.53266331658 6.1709410021
#-1.4824120603 4.79668508141
#-1.43216080402 11.4000667759
#-1.38190954774 11.2258541808
#-1.33165829146 12.6423644585
#-1.28140703518 8.66266769899
#-1.23115577889 11.7829956142
#-1.18090452261 12.649888449
#-1.13065326633 14.7285848384
#-1.08040201005 15.2164985858
#-1.03015075377 20.2135801278
#-0.97989949748 19.5302077452
#-0.92964824120 18.5952356839
#-0.87939698492 19.873007487
#-0.82914572864 26.5176183784
#-0.77889447236 25.8641839604
#-0.72864321608 29.1445431593
#-0.67839195979 28.3252900443
#-0.62814070351 31.1448859384
#-0.57788944723 36.7784493969
#-0.52763819095 32.9978347324
#-0.47738693467 37.9428026532
#-0.42713567839 43.8161937415
#-0.37688442211 47.9485495086
#-0.32663316582 50.5189699383
#-0.27638190954 48.4301392223
#-0.22613065326 46.5524869229
#-0.17587939698 51.971823943
#-0.12562814070 55.373996853
#-0.07537688442 54.889888555
#-0.02512562814 51.476646515
#0.025125628140 56.3144958669
#0.075376884422 58.0827899632
#0.125628140704 52.6566776805
#0.175879396985 53.3848239047
#0.226130653266 51.952833851
#0.276381909548 49.5291849722
#0.326633165829 49.9880743129
#0.376884422111 45.5874144944
#0.427135678392 40.862851594
#0.477386934673 42.1461871315
#0.527638190955 36.2426814817
#0.577889447236 36.2412379181
#0.628140703518 31.1194568745
#0.678391959799 32.8747928811
#0.72864321608 27.7905465353
#0.778894472362 20.9116561963
#0.829145728643 27.2232959121
#0.879396984925 22.0091818428
#0.929648241206 19.6359338559
#0.979899497487 17.8808131284
#1.03015075377 15.1549845315
#1.08040201005 13.4078832391
#1.13065326633 14.9723092915
#1.18090452261 12.7402820072
#1.23115577889 12.6779642908
#1.28140703518 10.2130039923
#1.33165829146 11.121922211
#1.38190954774 6.60769521041
#1.43216080402 11.9067562193
#1.4824120603 11.338550556
#1.53266331658 5.61432274929
#1.58291457286 1.84320695013
#1.63316582915 4.40329597508
#1.68341708543 6.64204976519
#1.73366834171 11.5708199553
#1.78391959799 6.46697489345
#1.83417085427 4.97813041772
#1.88442211055 11.266523161
#1.93467336683 10.6697806791
#1.98492462312 8.93040002748
#2.0351758794 9.86409854585
#2.08542713568 8.72359819561
#2.13567839196 11.9506496205
#2.18592964824 11.4445941924
#2.23618090452 9.19973600429
#2.2864321608 15.650912152
#2.33668341709 13.4897125212
#2.38693467337 13.0278794093
#2.43718592965 12.6098245829
#2.48743718593 16.5277197273
#2.53768844221 13.6027091977
#2.58793969849 15.5324221186
#2.63819095477 18.6648580176
#2.68844221106 13.7003463854
#2.73869346734 18.6656340432
#2.78894472362 19.3472468302
#2.8391959799 20.3302568155
#2.88944723618 19.5202958812
#2.93969849246 18.2578750013
#2.98994974874 19.168689628
#3.04020100503 23.2991267427
#3.09045226131 21.2784084146
#3.14070351759 23.8640500851
#3.19095477387 25.9162003493
#3.24120603015 24.2302051946
#3.29145728643 26.7597179616
#3.34170854271 27.2784154976
#3.39195979899 25.3069253354
#3.44221105528 26.7676958713
#3.49246231156 27.133221984
#3.54271356784 32.5926928722
#3.59296482412 32.73068346
#3.6432160804 33.4938973905
#3.69346733668 29.4353395652
#3.74371859296 36.9805795308
#3.79396984925 34.3432884545
#3.84422110553 35.515022334
#3.89447236181 39.4051325332
#3.94472361809 35.6274831293
#3.99497487437 36.9373145527
#4.04522613065 42.9629094387
#4.09547738693 43.4929933753
#4.14572864322 39.0826673714
#4.1959798995 43.930284497
#4.24623115578 42.5180750801
#4.29648241206 46.1452849314
#4.34673366834 47.0994754514
#4.39698492462 50.7107095921
#4.4472361809 48.9955359405
#4.49748743719 50.3015684439
#4.54773869347 52.9586025834
#4.59798994975 51.2565384742
#4.64824120603 57.3076705298
#4.69849246231 55.8909899002
#4.74874371859 55.8806209266
#4.79899497487 57.0427863293
#4.84924623116 60.2637609232
#4.89949748744 58.1114070291
#4.94974874372 60.0270837023
#5.0 58.5432052976
‘cyclohexane.sdf’#
copy and paste the parts needed but remove any #
#test CX
# --CCDC--102811 3D
#
# 18 18 0 0 0 0 0 0 0 0999 V2000
# 0.7430 -1.2880 -0.2703 C 0
# 1.4588 -0.0216 0.2583 C 0
# 0.7158 1.2663 -0.1544 C 0
# -0.7158 1.2623 0.2638 C 0
# -1.4392 0.0337 -0.2382 C 0
# -0.7430 -1.2407 0.1609 C 0
# 0.7629 -1.3083 -1.2361 H 0
# 2.3504 0.0027 -0.0975 H 0
# 1.5238 -0.0680 1.2151 H 0
# 0.7656 1.3748 -1.1069 H 0
# 1.1552 2.0183 0.2502 H 0
# -1.1471 2.0491 -0.0786 H 0
# -0.7681 1.2892 1.2222 H 0
# -1.4997 0.0758 -1.1952 H 0
# -2.3317 0.0318 0.1141 H 0
# -0.7939 -1.3433 1.1144 H 0
# -1.2072 -1.9810 -0.2378 H 0
# 1.1386 -2.0189 0.0411 H 0
# 2 1 1
# 3 2 1
# 4 3 1
# 5 4 1
# 6 1 1
# 6 5 1
# 7 1 1
# 8 2 1
# 9 2 1
# 10 3 1
# 11 3 1
# 12 4 1
# 13 4 1
# 14 5 1
# 15 5 1
# 16 6 1
# 17 6 1
# 18 1 1
#M END
#$$$$
Chapter 11 Q20#
‘UK-covid-deaths.txt’#
This is a text file. Note that the data is in reverse order so will need to be reversed before using. If the data is read into \(\mathtt{alldata[\,:\,]}\), then \(\mathtt{revdata[\,:\,]=alldata[\,:\,:\,-1]}\) will reverse it.
160545, 160463, 160356, 160235, 160097, 159967, 159832, 159704, 159551, 159402, 159241, 159077, 158898, 158703, 158527, 158312, 158088, 157836, 157596, 157357, 157099, 156846, 156549, 156288, 156048, 155767, 155516, 155238, 154932, 154679, 154400, 154119, 153827, 153537, 153245, 152973, 152689, 152435, 152169, 151891, 151624, 151385, 151135, 150881, 150669, 150451, 150273, 150096, 149916, 149748, 149558, 149434, 149265, 149125, 149008, 148905, 148778, 148647, 148521, 148421, 148298, 148197, 148089, 147961, 147855, 147744, 147615, 147513, 147393, 147298, 147193, 147068, 146956, 146835, 146697, 146586, 146440, 146311, 146204, 146079, 145983, 145860, 145742, 145635, 145503, 145366, 145250, 145108, 144990, 144885, 144755, 144631, 144495, 144369, 144217, 144043, 143917, 143782, 143633, 143490, 143342, 143193, 143037, 142871, 142703, 142545, 142389, 142224, 142066, 141889, 141701, 141532, 141361, 141168, 141007, 140843, 140710, 140558, 140393, 140257, 140099, 139945, 139817, 139690, 139561, 139428, 139289, 139140, 139020, 138905, 138780, 138684, 138567, 138447, 138324, 138221, 138101, 137998, 137902, 137792, 137663, 137550, 137425, 137317, 137201, 137104, 136979, 136854, 136715, 136564, 136443, 136306, 136181, 136058, 135881, 135730, 135585, 135431, 135321, 135178, 135040, 134894, 134728, 134587, 134432, 134293, 134136, 134002, 133855, 133726, 133608, 133492, 133385, 133256, 133130, 133003, 132887, 132785, 132671, 132556, 132437, 132331, 132214, 132105, 132003, 131893, 131809, 131722, 131626, 131519, 131412, 131324, 131243, 131162, 131082, 130987, 130893, 130791, 130711, 130637, 130556, 130461, 130371, 130265, 130184, 130096, 130024, 129948, 129876, 129803, 129720, 129643, 129588, 129530, 129448, 129381, 129329, 129277, 129225, 129182, 129132, 129091, 129057, 129015, 128968, 128926, 128897, 128864, 128835, 128806, 128777, 128749, 128724, 128703, 128679, 128666, 128644, 128627, 128605, 128582, 128574, 128561, 128545, 128520, 128497, 128485, 128479, 128466, 128445, 128435, 128425, 128411, 128405, 128394, 128385, 128375, 128369, 128361, 128354, 128342, 128330, 128317, 128313, 128305, 128296, 128287, 128279, 128270, 128257, 128250, 128241, 128232, 128228, 128219, 128213, 128208, 128202, 128194, 128186, 128178, 128172, 128165, 128154, 128139, 128129, 128120, 128111, 128099, 128089, 128076, 128066, 128056, 128042, 128033, 128021, 128006, 127990, 127975, 127961, 127946, 127938, 127915, 127898, 127874, 127855, 127837, 127819, 127794, 127776, 127754, 127737, 127716, 127687, 127663, 127638, 127612, 127576, 127548, 127520, 127502, 127475, 127444, 127413, 127381, 127343, 127300, 127264, 127230, 127191, 127143, 127097, 127056, 127004, 126937, 126856, 126792, 126722, 126664, 126584, 126501, 126406, 126309, 126201, 126109, 125985, 125867, 125730, 125586, 125453, 125301, 125132, 124978, 124831, 124647, 124423, 124211, 123981, 123753, 123493, 123218, 122929, 122647, 122321, 121969, 121589, 121171, 120740, 120293, 119775, 119279, 118788, 118254, 117678, 117069, 116458, 115779, 115142, 114440, 113687, 112968, 112110, 111257, 110361, 109466, 108553, 107484, 106374, 105260, 104195, 103026, 101867, 100696, 99451, 98213, 96914, 95550, 94253, 92983, 91672, 90444, 89214, 87995, 86782, 85651, 84553, 83530, 82543, 81547, 80613, 79704, 78859, 78099, 77337, 76587, 75829, 75107, 74447, 73768, 73110, 72453, 71838, 71254, 70688, 70124, 69549, 69043, 68554, 68039, 67501, 67069, 66608, 66129, 65710, 65272, 64819, 64371, 63939, 63503, 63078, 62657, 62262, 61786, 61311, 60924, 60525, 60101, 59635, 59164, 58738, 58304, 57816, 57352, 56888, 56411, 55944, 55490, 55028, 54539, 54095, 53672, 53217, 52783, 52346, 51925, 51534, 51143, 50659, 50244, 49850, 49448, 49068, 48739, 48377, 48038, 47678, 47353, 47013, 46699, 46412, 46144, 45863, 45611, 45398, 45174, 44938, 44717, 44517, 44325, 44164, 43985, 43835, 43684, 43567, 43456, 43343, 43218, 43114, 43034, 42939, 42837, 42766, 42694, 42634, 42567, 42498, 42431, 42374, 42326, 42272, 42223, 42184, 42151, 42116, 42059, 42019, 41992, 41960, 41940, 41916, 41888, 41861, 41843, 41822, 41805, 41787, 41774, 41761, 41751, 41741, 41726, 41717, 41704, 41695, 41685, 41675, 41670, 41660, 41654, 41649, 41638, 41629, 41618, 41606, 41600, 41584, 41575, 41568, 41560, 41556, 41547, 41535, 41531, 41519, 41512, 41503, 41496, 41486, 41473, 41464, 41450, 41437, 41428, 41422, 41408, 41392, 41382, 41371, 41357, 41347, 41335, 41323, 41311, 41294, 41277, 41270, 41254, 41236, 41216, 41204, 41190, 41176, 41158, 41145, 41125, 41104, 41079, 41065, 41044, 41022, 40985, 40961, 40934, 40898, 40871, 40838, 40809, 40766, 40739, 40692, 40653, 40608, 40559, 40518, 40450, 40376, 40311, 40247, 40193, 40133, 40081, 40020, 39961, 39877, 39805, 39719, 39656, 39576, 39496, 39387, 39297, 39172, 39044, 38934, 38811, 38677, 38522, 38354, 38219, 38092, 37929, 37743, 37526, 37329, 37115, 36915, 36719, 36499, 36276, 36038, 35770, 35495, 35202, 34935, 34621, 34307, 33973, 33656, 33335, 33026, 32678, 32300, 31917, 31456, 30996, 30531, 30047, 29597, 29103, 28535, 27984, 27412, 26853, 26258, 25625, 24978, 24295, 23617, 22886, 22141, 21358, 20590, 19790, 18971, 18128, 17250, 16393, 15497, 14539, 13583, 12639, 11638, 10562, 9563, 8668, 7751, 6845, 6005, 5199, 4430, 3769, 3179, 2673, 2237, 1839, 1477, 1174, 937, 751, 587, 457, 348, 275, 207, 155, 108, 76, 54, 38, 25, 17, 14, 9, 6, 6, 6, 3, 3, 1
Chapter 13#
‘test data.txt’#
remove # after copying
#200, 36.2, 1.5
#220, 42.7, 1.1
#240, 44.9, 1.8
#260, 51.8, 0.3
#280, 57.7, 2.0
#300, 60.9, 0.9
#320, 64.4, 1.2
#340, 68.2, 1.6
#360, 76.4, 1.9
#380, 80.1, 0.9
‘PCA data.txt’#
remove # after copying
#2.75, 6.00, -0.52
#1.65, 1.75, -0.39
#2.42, 7.25, -0.64
#2.09, 5.50, -1.17
#3.41, 7.50, -1.10
#2.53, 6.75, -0.67
#2.20, 4.00, -1.01
#1.10, 2.75, -0.62
#1.65, 4.00, -1.25
#1.21, 2.25, -0.61
‘exponential-data.txt’#
remove # after copying
# 1 , 1927, 1927
# 5 , 1329, 1329
# 9 , 812 , 812
# 13, 568 , 568
# 17, 390 , 390
# 21, 290 , 290
# 25, 171 , 171
# 29, 112 , 112
# 33, 87 , 87
# 37, 48 , 48
# 41, 43 , 43
# 45, 26 , 26
# 49, 26 , 26
# 53, 14 , 14
# 57, 13 , 13
# 61, 10 , 10
# 65, 6 , 6
# 69, 9 , 9
# 73, 8 , 8
# 77, 7 , 7
# 81, 3 , 3
# 85, 9 , 9
# 89, 5 , 5
# 93, 4 , 4
# 97, 8 , 8
